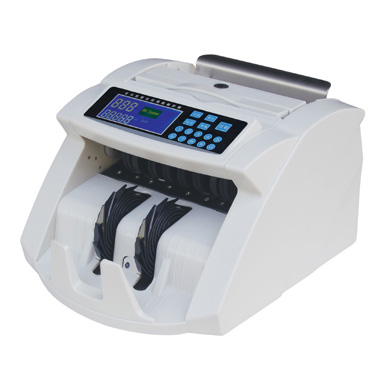

Bill Counter

Products No.: 3316B

Products Class: Banknote Counter

Hits: 3327

Add Date: 2011-01-21

Detailed Product Description

 Features:
     Sheets counting function and counterfeit detection function.
     1) Batch function
     2) Half note detection
     3) Chain note detection
     4) Double-note detection
     5) Width detection function
     7) UV counterfeit detection
     8) MG counterfeit detection
     9) Metal thread detection
     10) Inferred character detection
     11) Can mixed counting below currency :Taiwan
Specifications:
     1) Ambient Temperature: 0oC- 40oC
     2) Ambient Humidity: 25% - 80%
     3) Feed System: Roller Friction System
     4) Hopper Capacity: 120 old bills or 180 new bills
     5) Stacker Capacity: 120 old bills or 180 new bills
      6) Size of Countable Bills: 40mm X 110mm - 100mm X 186mm
     7) Thickness of Countable Bills: 0.06mm - 0.15mm
     8) Counting Result Display: Four (sheets) or Eighe (value)
     Digits LCD
     9) Batch Preset Number Display: Five Digits LCD (Green)
     10) Remove Display: Three Digits LED (Green)
     11) Power Source:
     Single Phase 110 V +/- 10% RMS, 50 - 60 Hz;
     Also available in 220 V +/-10% RMS, 50 - 60 Hz
     12) Power Consumption:<65 W
     13) Counting Speed: 1,000 notes/min
     14) Certification: CE,FCC approved
     15)External Size:(L)  345 mm×(W)  305 mm×(H)  235 mm
     16)Total Weight:   7.5 Kg
